May 10, 2023
TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL
Thank you all so much for your patience with me as I try to keep the site updated.
In order to serve you to the best of my ability, call so I can verify availability and cost.
We manufacture custom diameter culvert / csp / cmp, corrugated metal pipe from 10′ long to 56′ long. call JB for info.
*NEW*
We manufacture custom size caisons “kayยทsnz” from 36″ D. – 72″D by 10′ L. to 56′ L. no permit required, and caisons 84″ D. – 144″ D. x ?L. call JB for info.
RED TEXT = current prices as of 5-10-2023
Plastic prices have relaxed some, still, you must call for current price
Thank you for your patience and understanding. JB
TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL
“SOLUTION ORIENTED THINKERS” EXPERIENCED DO’ERS
**Tip for freight on large culvert. – NO PERMIT REQUIRED FOR 102″ wide by Max. height 13’6″ (includes trailer)
Folks we are out of Tulsa, Ok., we have a huge inventory, and have developed many resources for drainage pipe over the last 30+ years, we are just trying to reach out to those of you having a hard time finding your culvert, thank you.
Notice: If you need 120″ Diameter pipe, or Polymer coated pipe, or many 100’s of feet, or 10g, or need anything that is not standard culvert size, or wt. or ga., you must make phone contact with me!
Even if you send me an email with your engineers specs, follow up with a phone call, thanks. JB
Save on your TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL any size, any length, we deliver.
Delivery is available to any U.S. zip code.
Galvanized CMP/CSP pipe / TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL can be delivered and installed.
All N12 plastic is double walled, smooth inside, corrugated outside (ribbed), available in 20′ sections, and are belled on one end, spigot (nipple) and gasket on the spigot end to make a weathertight seal when connecting multiple pieces.
CMP pipe sizes are stocked in 10′, 20′, 24′, 30′ lengths.
Steel Pipe Connector bands are available for all sizes of CMP and the cost for up to 60″ is the same as 2 feet of pipe.
Beveled ends 4/1, 5/1, cost is the same per foot as nominal pipe size.
Any custom size diameter, length, and gauge is available, within 10 days.
RED TEXT = Today 5-10-2023 current price.
144″ x 20′ x 12ga. (.109 #223/ft.) 3×1 Steel Culvert $15,000 – $800/ ft. call for freight cost.
144″ requires an oversize load permit for each state. No biggie, $75 – $200 per state, Some states require a pilot a car.
*120″ Steel Culvert requires an oversize load permit, some states require a pilot car.
**120″ x 12ga. (.109 #183/ft.) Steel Culvert stand up only for storm shelter. $600 per ft.
120″ x 12ga 3×1 for drive over applications.
***3- 120″ x 8 ga. (.168 #284 /ft.) x 40′ $500 per ft. These are used in great shape, new cost is $1,000 ft. will cut in 20 footers. I only have 3 pieces available, don’t miss out.
Above 120″ Diameter pipe is available in segmented sections that bolt together, bridge sections for creek crossings, etc. Get your engineers specs. to me for a quote. Call for more info.
108″ x 20′ Steel Culvert $10,000 -$500 / ft., Call for freight cost.
96″ x 20′ Steel Culvert $8000 -$400/ ft. Call for freight cost.
96″ Stock lengths are 10′, 20′, 30, and 40′.

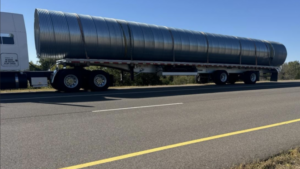

84″ x 12G x 20′ Steel Culvert $7300 -$365/ ft.
84″ x 10′, 20′, 30′ or 40′ available within 7 days. Delivery within 14-21 days.
72″ x 20′ Steel Culvert $5500 -$275/ ft. Call for freight.
60″ x 20′ plastic Culvert, special order only, limited quantities. $5,800 -$290 / ft., 60″ x 20′ Steel Culvert $4,000 -$200/ ft. call for current price
60″ x 12G Culvert Funnel end section. $2,650 call for current price
54″ x 20′ Steel Culvert $4,000 -$200/ ft. Note: 54″ is the same cost as 60″.
48″ x 20′ Plastic Culvert, special order only, 20 days to delivery, $3,400 – $170 / ft., 48″ x 20′ Steel Culvert $3,000 -$150 ft.
48″ CMP Steel Culvert Bands #48 $300 ea.
42″ x 20′ Plastic Culvert, special order only, 20 days to delivery, $3,000 -$150/ ft., 42″ x 20′ Steel Culvert $2500 -$125/ ft.
42″ x 12G Culvert Funnel end section. $1,440.
36″ x 20′ Plastic Culvert $2600 -$130/ ft., 36″ x 20′ Steel Culvert $2000 -$100/ ft.
36″ CMP Steel Culvert Bands #36 $200 ea.
30″ x 20′ Plastic Culvert, special order only, 20 days to delivery, $2,000 -$100 / ft., 30″ x 20′ Steel Culvert $1540 -$77/ ft.
24″ x 20′ Plastic Culvert- order $1300 -$65/ ft., Stock $1,500., 24″ x 20′ Steel Culvert $1300 -$65/ ft.
21″ x 20 Steel Culvert $900 -$45/ ft.
18″ x 20′ Plastic Culvert- order $800 -$40/ ft., Stock $1,000,. 18″ x 20′ Steel Culvert $1040 -$52/ ft.
15″ x 20′ Plastic Culvert- order $600 -$30/ ft., Stock $750,. 15″ x 20′ Steel Culvert $920 -$46/ ft.
12″ x 20′ Plastic Culvert- order $440 -$22/ ft., Stock $600,. 12″ x 20′ Steel Culvert $770 -$38.50/ ft.
10″ x 20′ Plastic Culvert- order $360 -$18/ ft., 10″ x 20′ Steel Culvert $500 -$25/ ft.
8″ x 20′ Plastic Culvert- order $260 -$13/ ft., 8″ x 20′ Steel Culvert $440 -$22/ ft.
Metal connector Bands for CMP up to 60″ cost = the price of 2 ft. of the same size pipe.
The High Performance Polypropylene is a heavy gray plastic Culvert pipe,
available in the following sizes and lengths.
These also are belled on one end, spigot (nipple) and gasket on the other end to connect multiple pieces.
Up to 48″ Diameter, available lengths are 13′, and 20′.
12″ x 20′ Heavy Gray Plastic Culvert $700 – $35/ ft., 12″ x 13′ = $455
15″ x 20′ Heavy Gray Plastic Culvert $840 – $42 ft., 15″ x 13′ = $546
18″ x 20′ Heavy Gray Plastic Culvert $1,000 – $50/ ft., 18″ x 13′ = $650
24″ x 20′ Heavy Gray Plastic Culvert $1,400- $70/ ft., 24″ x 13′ = $910
30″ x 20′ Heavy Gray Plastic Culvert $1,900- $95/ ft., 30″ x 13′ = $1,235
36″ x 20′ Heavy Gray Plastic Culvert $2,300- $115/ ft., 36″ x 13′ = $1,495
42″ x 20′ Heavy Gray Plastic Culvert $2,640- $132/ ft., 42″ x 13′ = $1,716
48″ x 20′ Heavy Gray Plastic Culvert $3,300- $165/ ft., 48″ x 13′ = $2,145
60″ Diameter lengths are 16.3′, and 20′.
60″ x 20′ Heavy Gray Plastic Culvert $7,500- $375/ ft., 60″ x 16.3′ = $3,600
All gray plastic Culvert pipe is stocked in these lengths:
13′, 20′, up to 48″ D.
16.3′, 20′ x 60″ D.
All steel Culvert pipe above 104″ diameter and over 40′ length,
1. requires a permit to move,
2. is custom ordered, and
3. takes about 1-2 weeks on average.
120″ Diameter x 12g steel, any length x $600 per ft. call for current price
120″ Diameter 10g steel, and above, or segmented pipe, call for custom quote, have your engineers specs. ready.
TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL
Flattened – Arched – Squashed galvanized pipe. call for current price.
13″ x 17″ x 16g x $50′ x 20′ = $1,000 Same volume as 15″ round.
21″ x 15″ x 16g x $60′ x 20′ = $1,200 Same volume as a 18″ round.
28″ x 20″ x 16g x $70′ x 20′ = $1,400 Same volume as 24″ round.
35″ x 24″ x 16g x $90′ x 20′ = $1,800 Same volume as a 30″ round.
42″ x 29″ x 14g x $130′ x 20′ = $2,600 Same volume as a 36″ round.
49″ x 33″ x 14g x $150′ x 20′ = $3,000 Same volume as a 42″ round.
53″ x 41″ x 14g 3×1 x $195 x 20′ = $3,900 Same volume as a 48″ round.
60″ x 46″ x 14g 3×1 x $240′ x 20′ = $4,800 Same volume as a 54″ round.
66″ x 51″ x 14g 3×1 x $250′ x 20′ = $5,000 Same volume as a 58″ round.
73″ x 55″ x 14g 3×1 x $280′ x20′ = $5,600 Same volume as a 64″ round.
81″ x 59″ x 14g 3×1 x $320′ x20′ = $6,400 Same volume as a 70″ round.
87″ x 63″ x 14g 3×1 x $350′ x20′ = $7,000 Same volume as a 75″ round.
95″ x 67″ x 12g 3×1 x $450′ x 20′ = $9,000 Same volume as a 81″ round.
103″ x 71″ x 12g 3×1 x $550′ x 20′ = $11,000 same volume as a 90″ round.
Lead times vary on the extra large Flattened – Arched – Squashed galvanized pipe.
Call for current price and details on larger sizes, or special sizes, flattened etc.
All sizes from 6″ to 120″ Diameter x standard lengths are in stock.
Special orders up to 60″ take 5-14 days. *Special orders above 72″, arched, or heavy gauge, can take up to 30-60 days.
All pipe, N12 plastic and CMP Steel meets DOT specs. and we install according to DOT specs.
WE DELIVER!
Free delivery in the Tulsa area.
We can deliver to any U.S. zip code.
Thank you for visiting TINHORN CULVERT CORRUGATED METAL PIPE PLASTIC STEEL
